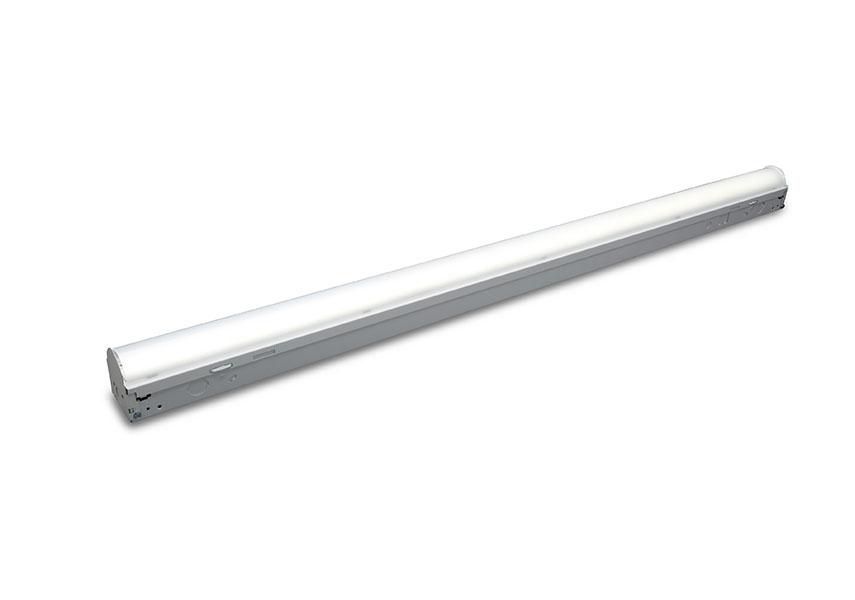

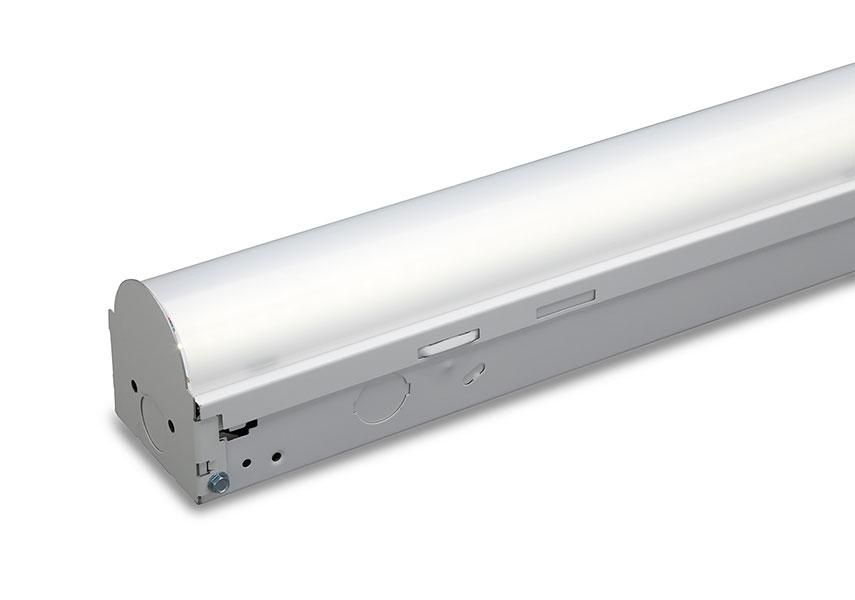

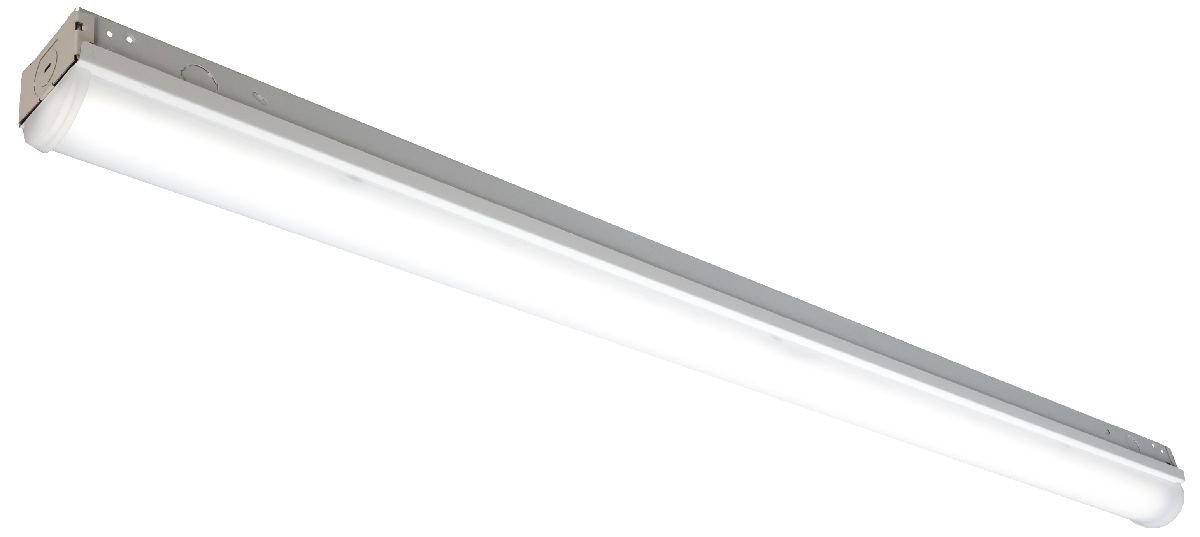

Albeo® ALV

ALV is an energy-efficient, cost effective linear fixture for a variety of commercial/industrial, low bay, stairwell uses with many controls options.
cCSAus_Icon 5_Yr_Warranty_Icon DLC_Standard_Icon Dimmable_Icon Damp_Rated_Icon Daintree_Icon Controls_Enabled_Icon

Features & Benefits

  • Daintree® Wireless Controls options for code compliance and additional energy savings
  • Daylight and motion sensors available
  • Continuous run with through wiring
  • Integral Emergency Backup
  • Tool-less entry and plug-in continuous row joiners make installation quick and easy
Utility Rebates
Where To Buy
SPEC SHEET

Specifications

Product Technology
Daintree®
Family Modules/Configurations
2ft, 4ft, 8ft
Voltage Offering
120-277 V, 347 V
Lumen Range
1,500 - 16,000lm
CCT Offering
3000 K, 3500 K, 4000 K, 5000 K
CRI Offering
80, 90
Mounting Options
Suspended, Surface
Wattage Range
12 - 116 W
Efficacy Range
132 - 151 LPW
Color Offering
White
Optics & Distributions
120° Diffused Lens, 60° Diffused Lens
Controls & Sensors
0-10V Dimming, Integral Sensor, Daintree Integral Sensor, Daintree Wireless Enabled
Certifications
cCSAus, DLC, FCC
Ratings
Damp
Operating Temp
-30 to 40 °C
Lumen Maintenance Rating
L80 @ 60,000 hours
Warranty
5 year limited warranty

Product Documents

Reliability You Can Count On

Our Engineering team prioritizes quality and reliability as #1. Heartbeat components like LEDs and drivers, are the key focus for design and validation. You will have peace of mind that a job with Current fixtures designed for total cost of ownership over the lifetime are used. With drivers designed with 10 year, 100,000 hour components, you can expect a B0 failure rate (designed for zero failures at ten years) for these luminaires.

Intelligent Controls

Daintree® Wireless Controls provide out-of-the-box integration for enhanced functionality and energy savings. From integrated sensor stand alone and room control options, to complete networked systems, Daintree® Wireless Controls provide additional energy savings and simple, quick setup. Remote commissioning for networked systems and the infrastructure to grow into the world of IoT today, or in the future are at the heart of Daintree® systems.

Designed with Installers in Mind

This is “not your father’s fluorescent fixture” modified for LED’s. Engineered for LED’s with LED’s from the ground up with the fixture structure, painted surfaces and LED technology to maximize the proper use of light. Designed by people who have installed fixtures, we have thought through every detail to keep it simple. From “one screw” belly pans to simple, plug in continuous run links, ALV installs quickly and easily with no surprises.
