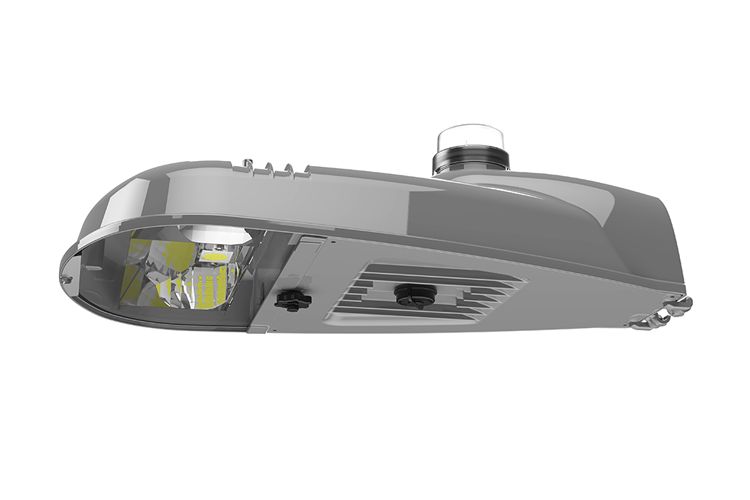

Evolve® ERL1

The Evolve® ERL1 Series Cobra Head with advanced reflective optics is optimized for customers seeking residential, local, collector and major roadway solutions.

Assembled_in_USA_Icon Wet_Rated_Icon UL_Icon NOM_Icon IP_Rated_Icon IK_Rated_Icon IDA_-_Dark_Skies_Icon DLC_Standard_Icon DLC_Premium_Icon cULus_Icon Controls_Enabled_Icon BAA_Compliant_Icon

Features & Benefits

  • Advanced Reflector Optic design optimizes application efficiency, minimizes glare and provides superior cut off with significantly less wasted light
  • Excellent light control which aims light directly on primary target, optimizing watts
  • Flat, tempered glass lens is less prone to dirt accumulation resulting in
  • Controls ready design: All Cobra heads have a standard ANSI 7 pin PE Receptacle
  • Designed and manufactured in the USA
  • Offerings to 10,000 Lumens with up to 143 LPW

Specifications

Voltage Offering
120-277 V, 347-480 V
Lumen Range
1,900 - 9,800lm
CCT Offering
2700 K, 3000 K, 4000 K
CRI Offering
70
Mounting Options
Adjustable for 1.25 to 2.0 in. nominal mounting pipe, 4 Bolt Slipfitter (option)
Wattage Range
14 - 97 W
Efficacy Range
101 - 143 LPW
Color Offering
Gray, Black, Dark Bronze, White, RAL and custom colors available
Optics & Distributions
Type II Narrow, Type II Wide, Type II Enhanced backlight, Type III, Type IV
Controls & Sensors
0-10V Dimming, 7-pin PE Receptacle, LightGrid+™ Compatible, LL PE available (option)
Certifications
UL, cUL, IDA, NOM, DLC Standard, DLC Premium, FCC
Ratings
Wet, BAA, RoHS
Operating Temp
-40 to 50 °C
Lumen Maintenance Rating
L94 @ 60,000 hours
Warranty
5 year limited warranty, 10 year optional warranty

Custom Engineered Reflective Optic Technology

Optimizes application efficiency, minimizes glare, and 'shapes' the light to put the light where it is needed.

Designed and Assembled in The USA

The entire Current Roadway street light portfolio is designed and assembled by our industry leading team in our state of the art manufacturing center in Hendersonville, NC.

LightGrid+™ Compatible

Current's Cobra Head portfolio is compatible with LightGrid+™. LightGrid+™ allows municipalities and transportation departments the ability to remotely monitor energy consumption, detect failures, dim fixtures remotely and achieve real time energy metering.
