New

Arize® Integral

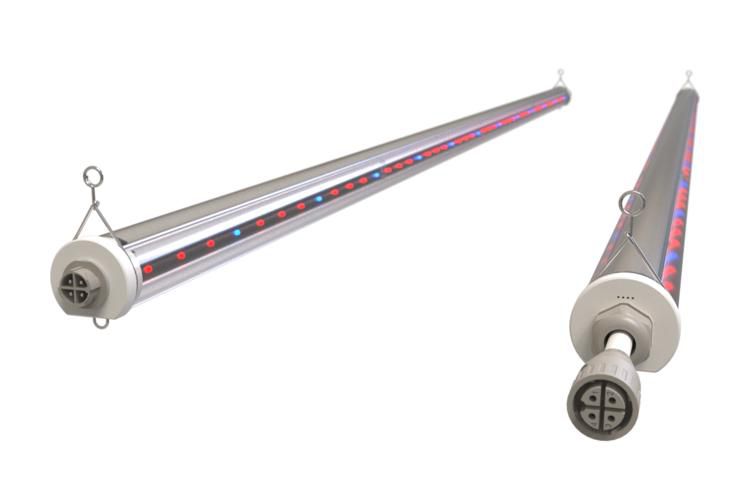

Intracanopy LED lighting system proven to substantially increase high-wire crop yield, including tomatoes, peppers & cucumbers, with best-in-class efficacy of 3.5 μmol/J
5_Yr_Warranty_Icon Wet_Rated_Icon IP_Rated_Icon cULus_Icon

Features & Benefits

  • Proven to increase plant growth, fruit ripening speed and yields
  • Best-in-class efficiency of 3.5 μmol/J
  • PPF up to 346 µmol/s using just 99W
  • Daisy-chainable—up to 165 fixtures
  • Bidirectional 120° beam angle precisely targets light dispersion
  • Installs within the canopy to supplement top lighting
  • IP66 and Wet Location rated
Where To Buy
SPEC SHEET

Specifications

Family Modules/Configurations
7' 9"
Voltage Offering
120-277 V, 277-480 V
Mounting Options
Suspended
Light Output Range
340 - 346
Wattage Range
94 - 99 W
Color Offering
Purple
Optics & Distributions
Bidirectional 120°
Certifications
cULus, CE
Ratings
Wet, IP66
Operating Temp
0 to 40 °C
Lumen Maintenance Rating
L90 @ 54,000 hours
Warranty
5 year limited warranty

Product Documents

Boost Yields

Adding supplemental LED lighting within the canopy of high wire crops is proven to encourage plant growth, accelerate fruit ripening speed and substantially increase yield. The Integral features a bidirectional 120° beam angle, immersing lower leaves on both sides of the fixture in light, and best-in-class efficacy of 3.5 μmol/J, for more sustainable growth.

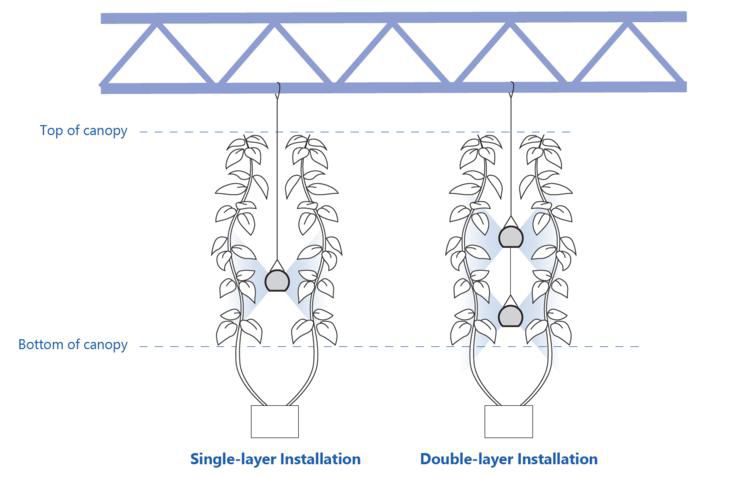

Easy and Flexible Installation

Installation is straightforward and cost-effective: Choose from a single- or double-layer installation, and simply hang the fixtures within the canopy. Up to 165 Integral fixtures can be daisy-chained together, further reducing installation time and labor.

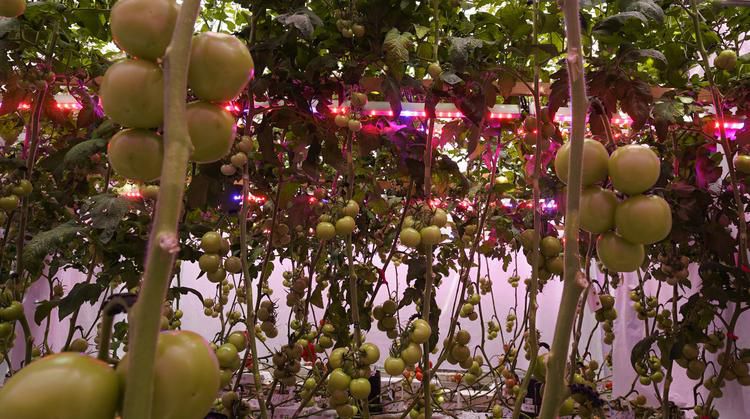

Engineered for the Field

Arize Integral is IP66 and Wet Location rated, meaning it remains safe, efficacious and reliable even in humid and wet environments. Protected by our standard five-year warranty and greater than 54,000 hour (L90) lifetime, this state-of-the-art intra-canopy lighting fixture is the basis of consistent high yields for years to come.
